King Shocks Bump Stop Mounting Sleeves 2.5" (BS2526, BS2541)

Rating:
% of 100
$39.45
6 In Stock
SKU
King Shocks Bump Stop Mounting Sleeves 2.5" (BS2526, BS2541)

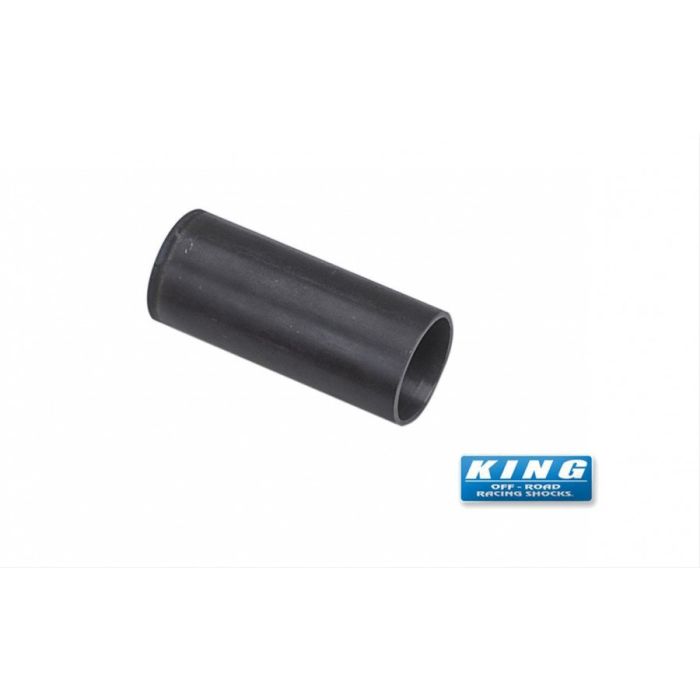

 King Shocks bump stop mounting sleeves are manufactured from top-quality .093 tubing and machined for clearance at the top end before the laser-cut tops are TIG-welded on. This leaves the first 1.25 in. at the open end a smaller size to provide a snug fit on the bump stop. Their locating pin registers into the top plate and the bump stop's threaded boss bolts securely to these mounts. This design holds your bump stop around the entire outside diameter without crushing it like pinch bolt designs do. King Shocks bump stop sleeves are delivered raw so that you can weld them directly onto your chassis.

SOLD INDIVIDUALLY

⚠ WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Bump stop mounting sleeves are made from tough .093 wall Chromoly tubing. Supplied raw, the mounting sleeves are ready to be welded to your chassis.
  • Laser cut tops hold the mounting boss securely and have indexing holes to keep bumpstops from rotating.
  • Sleeves are counter bored from the top side before the mounting plates are tig welded on to provide room for bumpstop expansion during use.
  • The first 1" of the completed tube is bored to size for a snug fit where the bumpstop body is supported by the wiper cap. Bumpstops are supported all the way around the outside diameter without interfering with the precision fit of the piston in the tube.

Universal

If you have any questions on the use or installation of this product please contact our customer support at (559)-549-6737

See manufacturer for details.
